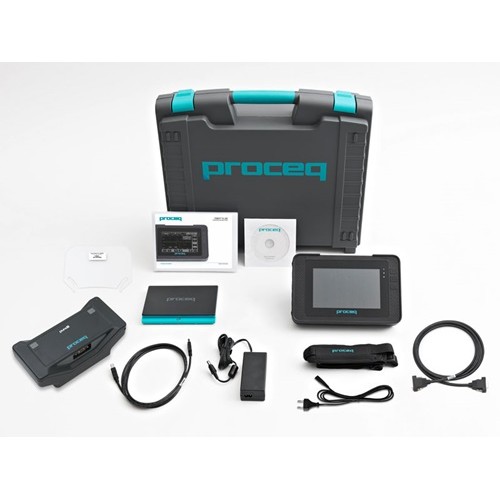

Proceq Pundit PL-200PE Ultrasonic Pulse Echo

The Pundit PL-200PE employs state-of-the-art pulse echo technology to extend the ultrasonic application to objects where access is restricted to a single side.

The measurement process is greatly assisted by innovations such as advanced echo tracking and automatic estimation of Pulse Velocity. The A-Scan Mode allows direct analysis of the raw signal and the real-time B-Scan Mode provides a cross-sectional view perpendicular to the scanning surface. The Area Scan enables slab thickness uniformity testing in grid patterns.

This allows the user to determine the slab thickness and to localize subsurface deformities such as voids, pipes, delaminations and honeycombing. Control buttons and optical feedback directly on the probe increase measurement efficiency to make the instrument even more user-friendly.

Features

Single side determination of slab thickness

Detection and localization of voids, pipes, delaminations and honeycombing

Advanced echo tracking technology helps identifying the main echo

Area Scan for slab thickness uniformity testing in grid patterns

Measure variations in tunnel lining thicknesses according to RI-ZFP-TU

Control buttons and optical feedback directly on the probe increase measurement efficiency

Automatic estimation of the Pulse Velocity

Easy B-Scan measuring through center marker and rulers directly on the probe

Dry-contact transducer: no couplant required, suited for measuring on rough surfaces

Lightweight and ergonomical handling

Expandable with Pulse Velocity transducers
