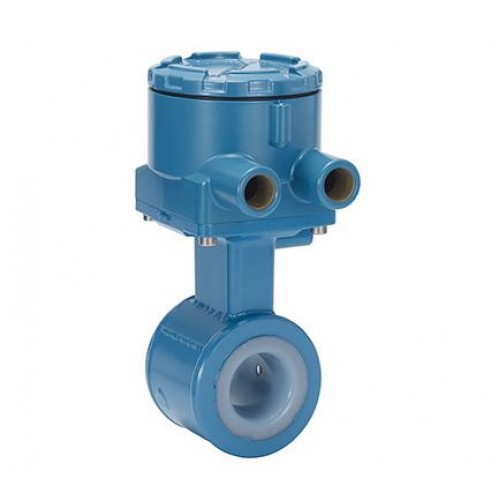

Rosemount 8711 Wafer Flowtube Sensor

The Rosemount 8711 wafer flowtube sensor is designed for conductive liquids. The Rosemount 8711 is available in line sizes from 0.15 through 8 inches with a wide range of electrode materials to meet your needs.

The flangeless design of the Rosemount 8711 wafer flowtube sensor makes it an economical, compact and lightweight alternative to flanged magnetic flowmeters. Alignment rings provided with every Rosemount 8711, center the flowtube sensor in the process line for easy installation.

Rosemount magmeter systems use pulsed DC technology that provides continuous automatic zeroing to compensate for variations in the process environment. Process liquid must have a conductivity of 5 microsiemens/cm (5 micromhos/cm) or greater.

The Rosemount 8711 flowtube sensors are interchangeable with both the 8732E and 8712D transmitters. System accuracy on the Rosemount 8711 wafer flowtube is maintained regardless of line size or optional features. Each flowtube sensor nameplate has a sixteen-digit calibration number that can be entered into a transmitter through the Local Operator Interface (LOI) or the HART Communicator - depending on model.

8711ASA15FR1

8711ASA15FR1D1

8711ASA15FR1DT

8711ASA15FR1DW

8711ASA15FR1Q4

8711ASA15FR1Q5

8711ASA15FR1Q8

8711ASA15FR1Q4Q8
