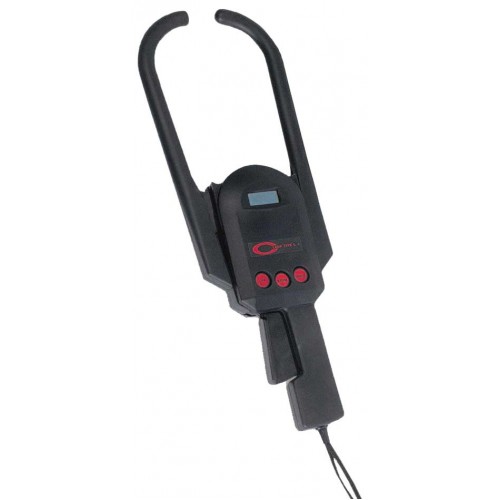

Seaward 275A910 Type L Plus large jaw clamp meter

Seaward Type L Plus Large Jaw Clamp Meter Details

The Seaward Type L Plus is made for measurement of current in large diameter conductors and fuses.  It has a large 100 millimeter jaw opening that allows for use even in the most difficult of situations and it is suitable for porcelain fuse carriers in distribution systems.

This unit also has plenty of insulation for more protection for you and has a facility to provide complete linearity of measurement between 0 and 2000A.  It has a large 3.5” LCD and is controlled using just two main operating buttons.  A TRACK facility gives you continuous readouts and the STORE facility diligently monitors peak levels – the perfect combination for monitoring maximum demands in electrical distribution networks.

With the ability to operate in the most difficult circumstances the instrument is capable of use on porcelain fuse carriers in distribution systems.

Seaward Type L Plus Key Features

• 12mm high characters on a 3.5” LCD display
• 0-2000 amps measurement range
• 50-600 volts AC and a 50 Hz voltage range
• 100mm x 140mm dimensions for the internal jaw
• 0 degrees Celsius - +40 degrees Celsius operating temperature range
• -20 degrees Celsius to +0 degrees Celsius storage range
• 9 volt PP3 IEC umber 6LF22 battery
• 3% accuracy of full scale on all ranges for a conductor positioned at the center of the jaws
