Seaward PV 1525-IV [PV1525-IV] Solar PV Tester with IV Curve Tracing

The Seaward Solar PV:1525-IV verifies safety and functionality in PV systems rated up to 1500V DC and 25A. It enables a suite of checks like earth continuity, insulation quality, voltage under open-circuit conditions, and short-circuit current levels.

The PV:1525PV-IV has IV curve tracing. This function visualises module performance and diagnoses potential faults, displayed on a bright colour screen.

Equipped with Bluetooth functionality, the PV:1525-IV allows wireless syncing with mobile apps for efficient test record capture, labelling, and firmware management. The instrument also includes illuminated controls, internal memory for test storage, and a manual mode.

Key Features
PV String Open Circuit Voltage Measurement up to 1500V DC
PV String short circuit Currentup to 25A DC
Insulation Resistance voltage up to 1500V DC
Bluetooth data transfer to new PV Mobile App
Wireless Updates - Firmware changes can be applied to the device via the App
Intuitive Colour Display
Illuminated Function Buttons allow for guided navigation and testing
Internal Memory for results storage
Manual Mode for Diagnostic testing
On-Screen display of IV Curve

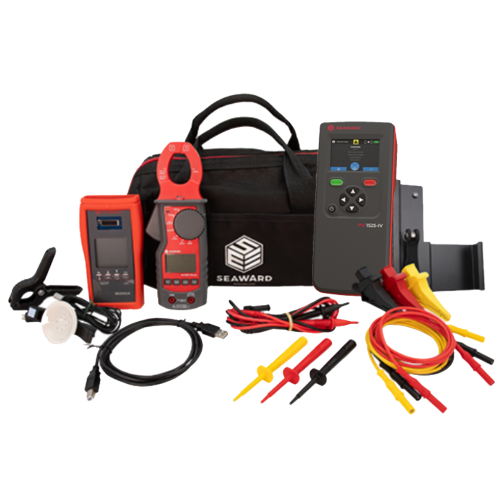

What's Included?
PV:1525-IV instrument
Carry Case
Set 4mm Test Probes - Red, Black and Yellow (With detachable Clips)
Set Instrument to MC4 Test Leads - Yellow and Black
LiPo Battery Pack
Battery Charger
Printed QSG
SS200LR Irradiance Meter
PV:1500 Clamp (Wireless Clamp Meter)
Solar Panel Clamp
Solar Certs
