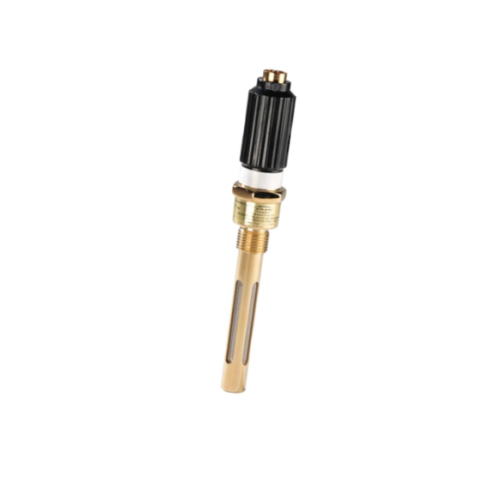

Shaw Moisture Meters Moisture Sensor

The Shaw Moisture Meters Moisture Sensor is designed for use with the AcuDew Dewpoint Transmitter, certified intrinsically safe, and can be used in either hazardous or non-hazardous areas. A Zener barrier (shunt diode safety barrier) should be used when installing the sensor in a hazardous area.

For applications where a flammability hazard may exist, the sensor can be placed in the hazardous zone, while the Zener barrier and display unit are installed in a safe area. The sensor can be placed up to 1km from the Zener barrier.

Features
Sensor range options:
-148 to 32°F (-100 to 0°C) DP, 0 to 6,000ppm
-148 to -4°F (-100 to -20°C) DP, 0 to 1,000ppm
-112 to -4°F (-80 to -20°C) DP, 0 to 1,000ppm
-112 to 32°F (-80 to 0°C) DP, 0 to 6,000ppm
-112 to 68°F (-80 to 20°C) DP, 0 to 23,000ppm
Wide dynamic range from 0.001ppm to 0.2 percent by volume
Stability, low hysteresis and temperature coefficients
Flow independent
High selectivity for moisture
Can be intrinsically safe (when used in conjunction with a Zener barrier/signal isolator)
Operates over a wide range of temperature and pressure
