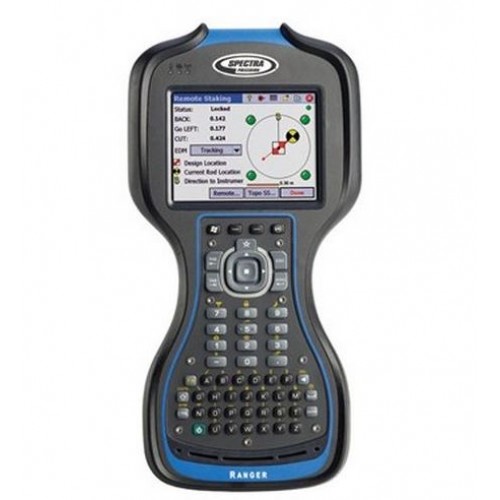

Spectra Ranger 3XR Data Collector

The Spectra Ranger 3XR with Survey Pro Max software is a handheld field computer that helps you collect and calculate accurate field data, such as coordinates, angles, distances, elevations and more. An essential accessory to any total station, this data collector is equipped with a Windows operating system, ergonomic keypad, military-grade durability, GPS receiver, radio robotic module and a camera to maximize your productivity on the jobsite.

Display and Keyboard

Featuring a large, dual-layer glass touch-screen display, the Ranger 3XR allows better viewing of field data and maps, even in bright sunlight. It also has a full alphanumeric keypad so you can input numbers, letters, or symbols as easily and quickly.

Connectivity

This surveying field data collector has a built-in GPS receiver with low battery consumption for precise navigation and improved signal, even under forest canopy or near tall buildings. It also features a 2.4 GHz radio module for using the device easily with existing Spectra robotic total stations and a customized 5-megapixel camera with LED flash that includes time and location data from the GPS receiver through Microsoft pictures & videos software. You can also upload and download data using its integrated Wi-Fi or WWAN (Wireless Wide-Area Network) connection, which uses cellphone networks to access the Internet or send text messages. The Bluetooth capability allows cable-free connection with other field instruments and PC.

Processor and Memory

The Spectra Ranger 3XR comes standard with a high-speed 800 MHz processor and 256 MB RAM for running fast and reliable software applications and 8 GB of onboard memory for storing data. It has an accelerometer that automatically rotates the graphics on the screen based on the device’s angle and an integrated compass with a robust calibration method for better accuracy. It also provides a high-capacity SD card slot, USB and 9-pin serial communication options for transferring data easily to a PC.

Operating System

Equipped with the worldwide industry standard for PDAs, Windows Mobile 6.5 Professional operating system runs specialized mobile version of all your favorite programs including Internet Explorer, Word, Excel, PowerPoint, Outlook and Media Player. With this portable data collector, you can view PDF files easily with Adobe Reader and communicate with the device’s built-in GPS receiver via SatViewer.

Spectra Survey Pro Max Field Software

Spectra Survey Pro Max is the ultimate field on-board data collection software package for surveyors. It gives you a complete set of tools for data collection, calculations, mapping, data storage, data management and data transfer to your laptop or PC. It has all the software features and functions and completely supports GNSS receivers and total stations that were compatible with previous versions of the software, such as Survey Pro Robotics and Survey Pro GNSS.

This field software incorporates improvements based on actual field experiences to suit all your project needs. It also provides easy-to-navigate intuitive operation, multiple language support and a customizable home screen that greatly minimizes the learning curve. You don’t need to be a professional to be able to take advantage of this software’s powerful features.

Outdoor Rugged Design

With the Spectra Precision Ranger 3XR field controller, weather is not an issue in getting the survey job done. It works even in the harshest worksite conditions, such as in blazing heat, subzero cold, driving rain or dusty job sites. Its rugged construction complies with military standard for drops, vibration, humidity and extreme temperatures. In fact, it can survive 26 drops from 4 feet high onto plywood-over-concrete floors! With an IP-67 rating, it can withstand sand or dust for at least 8 hours of operation and immersion in up to 3.3 feet of water for 30 minutes. With its high-durability, rest assured your hard-earned survey data is safe and secure.

All-day Battery

Designed to be long lasting, the Spectra Ranger 3XR features a 2600 mAh Li-Ion rechargeable battery that provides up to 30 hours of power on a single charge. The ultra-long-life battery in this handheld surveying tool can also be removed and replaced at the worksite, enabling all-day use by hardworking professionals and non-professionals alike.

The Ranger comes with standard accessories, such as a nylon carry case, two stylus pens, stylus cord, USB cable, audio port dust cover, I/O port dust covers, hand strap, two screen protectors, rechargeable Li-Ion batteries, AC international charger and 1-year manufacturer’s warranty.

On the job site or in the office, the Spectra Ranger 3XR has the features you need to stay productive. With its integrated Bluetooth, GPS, Wi-Fi, WWAN, robotic radio module and 5-megapixel camera, it is suitable for everyday use and carries your data securely. This topographic field data collector is truly a powerhouse of field and office functions in one rugged business device.

• Water resistant and dustproof to IP-67

• Internal 8 GB Memory
• Built in 2.4 GHz robotic radio module and Camera
• Integrated Bluetooth, Wi-Fi, Compass, GPS, and WWAN
• Built-in software and Windows OS
• Up to 30-hour battery life
• Dual-layer glass touchscreen display
• Alphanumeric keypad
