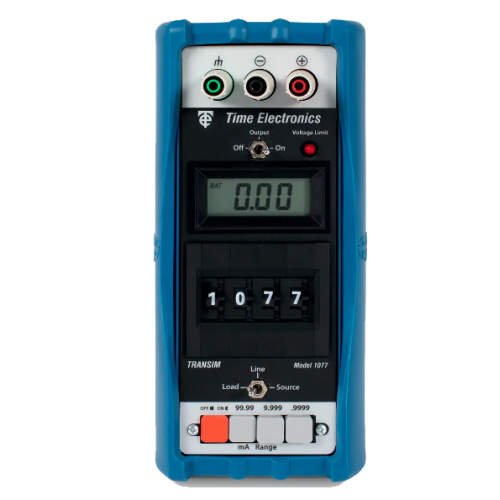

Time Electronics 1077 Milliamp Transducer Simulator

The Time 1077 contains 3 three modes: an adjustable current load for the simulation of a transducer on a line, an adjustable power supply mode from 14V to 40V and a precision current sourcing mode from 14 to 40V drive capacity.

This transducer simulator is primarily used for the testing and simulation of milliamp transducer systems both inside laboratories and when out in the field. To accommodate for tests outside the lab the 1077 is encased in protective rubber and is designed to resist common stresses such as those found in process control applications. It's also portable enough to be used in just one hand and won't require a desktop for comfortable use and it runs on rechargeable batteries too.

The 1077 includes fitted safety terminals and is made for use with standard 4mm shrouded plugs, standard normal plugs, bare wires and spade terminals.

Time Electronics 1077 Milliamp Transducer Simulator Key Features

Adjustable current loop simulates transducer on a line. This mode can draw up to 100mA from the line.
Adjustable power supply from 14 to 40V
Can be used as a precision current source with 14V to 40V maximum adjustable drive capacity.
Safety terminals built-in
Rubber covering for extra protection
Runs on rechargeable batteries
Portable and ideal for use out in the field

Full List of Products Included

Time Electronics 1077 Milliamp Transducer Simulator
Fitted Protective Cover
Installed Rechargeable Battery Pack
Mains Charger
User Manual
