T&R KV30-40 mk2 High Voltage AC Test Set - 30kV, 40mA

T&R KV30-40 mk2 High Voltage AC Test Set - 30kV, 40mA Details

Please note that this is a price-on-request item. Please call us directly for further information.

This system can generate variable output voltage from 0 to 30kV, making it suitable for testing insulation systems and breakdown voltage.

Voltage levels are completely variable - the user can adjust the system as necessary to cater for different applications. This system also has maximum current of up to 40mA.

The KV30-40 includes the ability to automatically select mains voltage, has a 24V DC interlock circuit and is protected by a fully adjustable current trip system, allowing the user to configure trip level from 10 to 110% of the rated output in 10% steps.

Supplied as standard in a portable case with permanently-attached HV ouput lead.

T & R KV30-40 mk2 High Voltage AC Test Set Key Features

• Variable output voltage from 0 to 30kV
• 40mA max current
• Automatically selects mains voltage
• Key operated - locked down to prevent unauthorised access
• Dual overload protection
• Variable electronic trip from 10 to 110% of rated ouput
• Voltage and current metering with dual analogue displays
• Zero voltage interlocking
• External 24V DC interlock circuit
• Visual indication of test piece failure

What's Included?

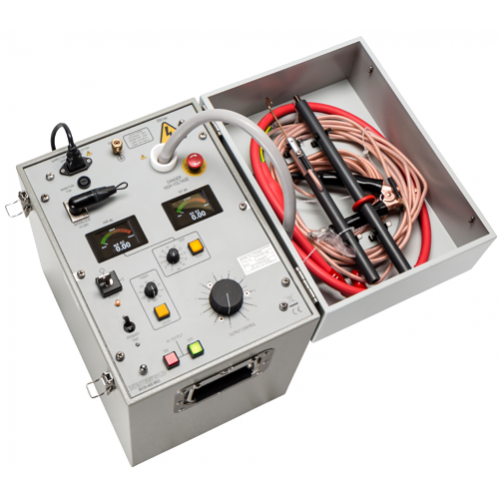

• T & R KV30-40 mk2 High Voltage AC Test Set
• Supply Lead
• Spare Fuse Set
• Operating Manual
• Earth Lead
• ES30 Earthing Stick
