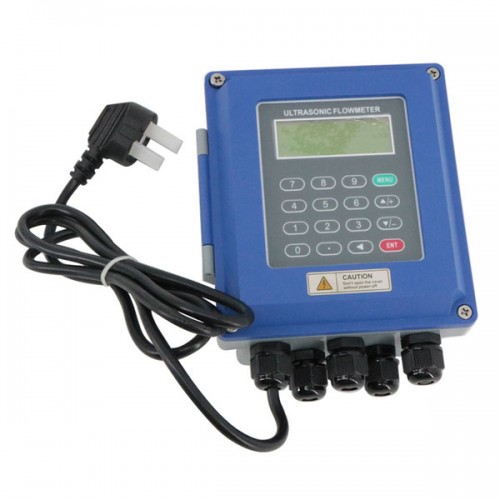

TUF-2000B TM-1 [TUF2000B TM-1] Ultrasonic flow meter

Introduction of Ultrasonic flow meter:

TUF-2000B Flowmeter can be virtually applied to a wide range of long-term online measurement. Convertor protection class IP67,transducer protection class IP98.A variety of liquid applications can be accommodated: ultra-pure liquids ,portable water,chemicals,raw sweage,reclaimed watere,cooling water,river water,plant.etc

Principle Transit-time ultrasonic flowmeter

Accuracy ±1%

Display 2x20 character LCD with backlight, support the language of Chinese, English, Italy, Turkish

Signal output 1way 4-20mA output, electric resistance 0-1K, accuracy0.1%

1 way OCT pulse output(Pulse width-1000ms, default is 200ms))

1 way Relay output

Signal input 3 way 4-20mA input, accuracy 0.1%, acquisition signal such as temperature, press and liquid level. Connect the temperature transducer P100, can finish the heat/energy measurement.

Data Interface Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS

Pipe material Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowed

Pipe diameter 50-700mm
