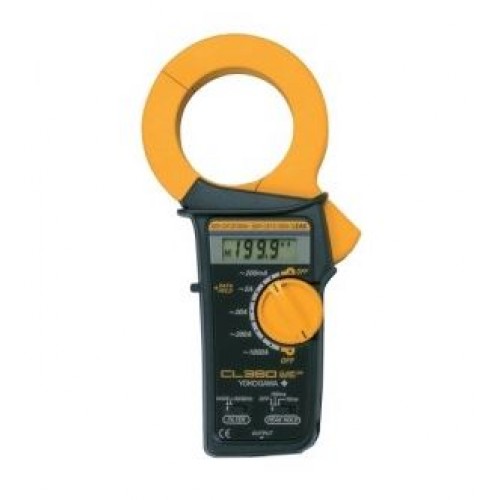

Yokogawa CL360 Clamp Meter

Yokogawa CL360 Product Specifications Summary:

(for full specs please see the full specs tab or the data sheet)

Clamp Meters/Clamp Meters Template

Type Current Leakage Clamp

True RMS What's This? No

Maximum Current AC What's This? 1000 A

Counts What's This? 1999 .

Resolution AC Current 0.1 mA (0.0001 A)

Maximum Conductor Size 68 MM (2.68 IN)

Auto Ranging/Manual What's This? Manual

Detachable Jaw No

Rotating Jaw / Swivel No

Peak Hold Yes

In-Rush Current What's This? No

Dual Display No

Analog Bargraph on Display No

Backlight No

Remote Display No

Resistance No

Frequency No

Continuity What's This? No

Capacitance No

Temperature (K T/C) No

Temperature (IR Sensor) No

Diode Testing No

CAT Rating What's This? III

CAT Voltage What's This? 300 V

Overload Protector No

True Power (KW) No

Apparent Power (VA) What's This? No

Power Factor (PF) No

Single Phase/Three Phase Single Phase

Crest Factor No

Energy (KWh) No

Reactive Power (KVAR) No

Source/Simulate (Process Clamp) No

Test Equipment General Attributes

Warranty 12 MONTHS (1 YEARS)

Calibration Included Factory Calibration

Data Logging What's This? No

Product Weight 570 GRAMS (1.26 LBS)

Product Height 55 MM (2.17 IN)

Product Length 129 MM (5.08 IN)

Product Width 248 MM (9.76 IN)

ECCN Number EAR 99

HTS/Schedule B Number 9030.33.0040

Country of Origin Japan
