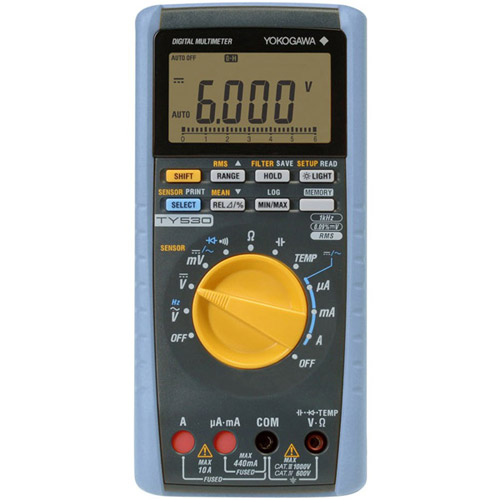

Yokogawa TY530 Digital Multimeter

The TY530 simply performing special operations via front panel allows for quick and reliable adjustment. In addition, the series allows for one-touch adjustment of AC voltage- and AC current-to-frequency characteristics. The user calibration function leads to improved operation efficiency and cost reduction.

The TY530 Digital Multimeter can directly read the various sensor output signals (mV DC/AC) at any scaling. The units can be changed (16 units are available).Output signal and scaled value are simultaneously displayed.

Shutters prevent erroneous insertion of test leads into current measurement terminals (terminal shutters).Conforms to overvoltage category 1000 V AC/DC, CAT and 600 V AC/DC, CAT IV. If the function is switched to other than current measurement while a test lead remains inserted in a current measurement terminal, the fuse built into the DMM can not protect the circuits. The terminal shutters prevent such accidental errors.

Two memory modes selectable from 2 types of memory mode to suit field needs.

Yokogawa TY530

Digital Multimeter

High Precision

Basic accuracy 0.09%

True RMS measurement

Ensured Field Site Safety

Conforms to safety standards EN61010-1, 1000V CAT III, 600V CAT IV

Safety shutters for preventing erroneous insertion of test leads into current measurement terminals

Current direct reading function provided by current clamp sensor (optional)

Low-pass Filter (LPF)

Logging-mode memory for 1600 data

Closed Case Calibration

3-year Warranty

USB communication, application software (Optional DMM communication package)
