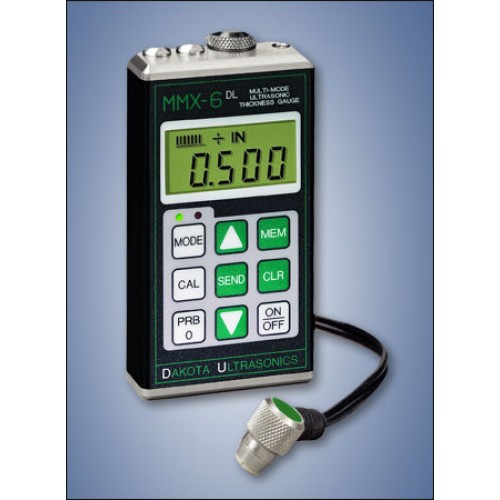

Dakota MMX-6DL Thickness Gauge Complete Kit, Z-143-0001

The new CHECK-LINE MMX-6DL Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!

The MMX-6DL can be used in a Single Thickness Reading mode or in a Scan mode, where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.

The MMX-6DL incorporates a built-in memory for 1000 data points that can be separated into 10 separate "batches." The stored data can be downloaded to a serial printer or a personal computer. A Windows compatible data transfer program is supplied at no additional cost.

The MMX-6DL probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions.

Measuring Range in Steel

Pulse-Echo Mode (Pit & Flaw Detection) measures from 0.025 to 19.999 inches (0.63 to 500 millimeters).

Echo-Echo Mode (Through Paint & Coatings) measures from 0.1 to 1 inch (2.54 to 25.4 millimeters).

Features

• Ability to measure through paint and eliminate coatings
• Resolution of 0.001 inch (0.01 mm)
• Large, backlit LCD display retains last reading
• Simple operator controls virtually eliminate training
• RS-232C Serial output for downloading stored data to a printer or computer
• Memory for 1000 data points in up to 10 batches
• Special-purpose probes are offered for a variety of applications
• Switch-selected units for inches or mm
• For underwater surveying, probe cable lengths up to 50 feet are optionally
• CE Certified
• Includes NIST-Traceable Calibration Certificate
