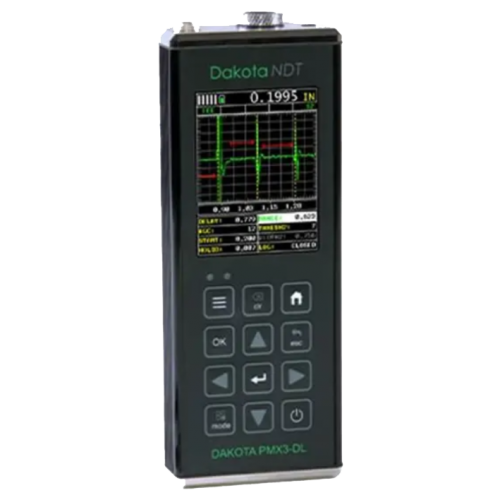

DAKOTA PMX3-DL PRECISION THICKNESS GAUGE
- ManufacturerDakota NDT
- Product Code: PMX3-D
- Availability: Pre-Order
-
Rp0
The Dakota PMX Precision Thickness Gauge offers user selectable resolution of either 0.01mm or 0.001mm (0.001/0.0001"). The auto find feature locates the detection point(s) and adjusts the display settings to bring the waveform into view.
The high speed scan feature on the Dakota PMX thickness gauge speeds up the inspection process by taking 250 measurements per second. Remove the transducer from the test material and display the minimum measurement scanned.
Technical Specification
Dakota PMX Precision Thickness Gauges (PVX)
| Part Number | Description | Certificate |
| Z-157-0006 | Dakota PMX2-DL Precision Thickness Gauge (PVX) |
|
| Z-157-0007 | Dakota PMX3-DL Precision Thickness Gauge (PVX Colour) |
|
| Operating Temperature | -10 to 60ºC (14 to 140ºF) | |
| Power Supply | 3 x AA batteries and via USB | |
| Battery Life | Alkaline: greyscale 35 hrs, colour 12 hrs Nicad: greyscale 10 hrs, colour 5 hrs NI-MH: greyscale 35 hrs, colour 12 hrs |
|
| Gauge Weight | 383g (13.5oz) - including batteries | |
| Gauge Dimensions | 63.5 x 165 x 31.5mm (2.5 x 6.5 x 1.24”) | |
| Packing List | Unit, standard 1/4" Delay Line Transducer (2 Delay Tips – 3/8” & 1/2” L) & Cable, Couplant, Manual, Certificate of Calibration, AA Batteries and Plastic Carrying Case. | |
