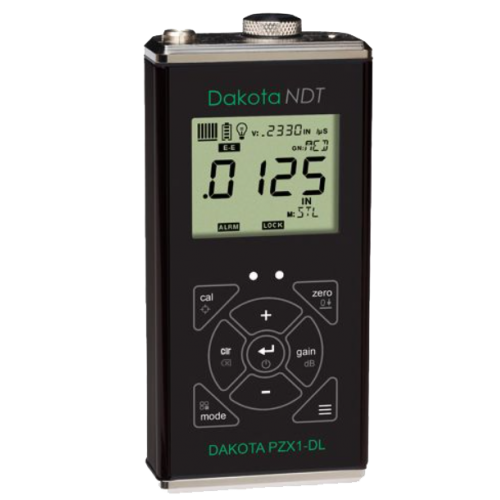

DAKOTA PZX1-DL PRCISION THICKNESS GAUGE
- ManufacturerDakota NDT
- Product Code: PZX1-DL
- Availability: Pre-Order
-
Rp0
The Dakota PZX1-DL Precision Thickness Gauge has ThruPaint™ technology allowing you to accurately measure the thickness of thin substrates.
The gauge is typically used for thin material applications. This gauge has the ability to calibrate to a variety of different materials using the one point calibration option.
PRODUCT FEATURES
| Model | PZX1-DL | |
| Display Mode | ||
| Material thickness digits display | ||
| Measurement Range |
PE: 0.63 - 914.4mm (0.025 - 36”) |
|
| Resolution |
0.01mm (0.001”) |
|
| Velocity Calibration Range |
309.88 - 18,542m/s |
|
| Additional Features | ||
| High Speed Scan Mode | ||
| Differential Mode | ||
| Limit alarm mode | ||
| Memory and Data Logging |
Sequential data storage, 40 files of 250 readings per file, for 10,000 readings |
|
| Transducer Probe Type |
Single Element |
|
| Transducer Frequency Range |
5 - 20MHz |
|
| Transducer Recognition |
manual - selectable from a list |
|
| Auto V-path correction | ||
| Display |
12.7mm (0.5 inches) high digits |
|
| Probe Zero |
Manual (via integrated probe disk) |
|
| Display Refresh Rate |
25Hz |
|
| Units (selectable) |
mm or inches |
|
| LED Backlight |
on / off / auto |
|
| Repeatability / Stability Indicator | ||
