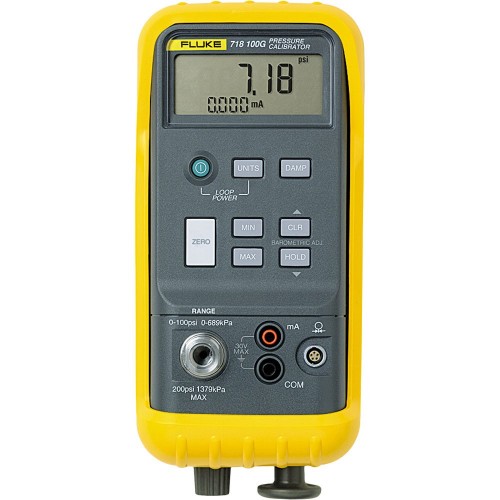

Fluke 718 1g Pressure Calibrator

Fluke 718 Pressure Calibrator Details

Please note that the Fluke 718 is available with a selection of configuration options. Use the dropdown box above when placing an order to choose which product you'd like. The table below can also be used for reference.

The complete solution for pressure calibration, the Fluke 718 combines together all of the functions you'll need to calibrate transmitters, gauges and switches with an easy-to-use, ergonomically designed calibration instrument.

Available in a selection of pressure configurations, the 718 is designed to perform pressure sourcing and milliamp measurements to calibrate/maintain correct operation of practically any pressure instrument, equipment or device.

An integrated pump is also included, making it easy to clean out the tester should it accidentally be exposed to fluids. The pump uses protective check valves that allows air to pass through the pump but stops liquids, making the chances of accidental liquid seepage significantly lower.

This calibration instrument is also compatible with 29 pressure modules which are part of Fluke's 700 series. These modules are sold separately and allow you to further expand the capabilities of this instrument.

Fluke 718 Pressure Calibrator Key Features

• Selection of PSI ranges
• Ideally suited for total pressure calibration of transmitters, gauges and switches
• Compact design - around 1/3 of the size of other comparable calibration instruments
• Pressure sourcing and milliamp measurements - the 718 caters for almost any pressure device
• Integrated pump with liquid filtering - easy to clean should accidental liquid spillages happen plus allows servicing when out testing
• Error % calculation for quick PASS/FAIL determination when working
• Best in class mA accuracy of 0.015% for higher accuracy when calibrated
• MIN/MAX functions calculate the maximum or minimum values taken over a time period
• Data hold function temporarily freezes last value taken on the screen
• Switch test feature for quicker/more accurate pressure switch testing
