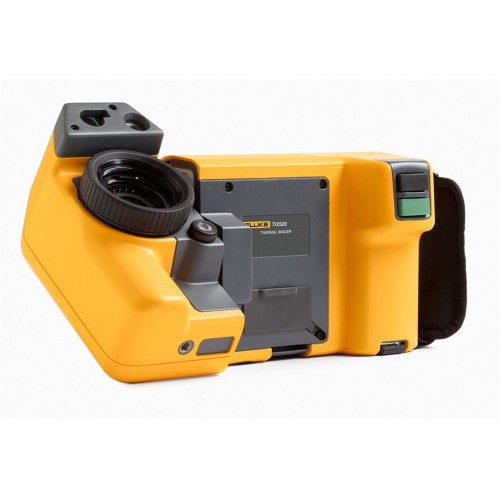

Fluke TiX520 Thermal Camera

Fluke TiX520 Thermal Camera Details

The Fluke TiX520 is an advanced thermal camera with a huge, 5.7" responsive touchscreen, 180° articulating lens and countless other advanced features.

This thermal camera produces high quality thermal images with standard IR resolution of 320 x 240 pixels. This quality can be further improved upon by using Fluke's SuperResolution technology (via Fluke's software) to enhance images to up to four times the standard resolution (up to a total of 307,200 pixels).

Need to line up an image perfectly? Just use the TiX520's LaserSharp auto focus technology to focus exactly on what you need to capture without any bluriness. A built-in laser distance meter is also included to display the distance from the camera that the image was taken at (this information is stored directly on the image).

A built-in filter mode is included on this camera, allowing the thermal sensitivity to be adjusted 50mK from 40mK to pinpoint even the most minor differences in temperature. Alternative lenses (sold separately) can be attached to the camera to expand or narrow the field of view as needed for the perfect image every time.

Fluke's Connect technology is also built into this camera. This uniquely designed mode allows the camera to interface with selected other Fluke Connect enabled testing tools and smartphones to share information, images and detail over a wireless network.

Fluke TiX520 Thermal Camera Key Features

• Largest-size touchscreen currently on the market - 5.7" fast response for easy adjustments and image management
• 180° articulating lens - move the lens as needed to get the best possible image in awkward applications
• Premium image quality - standard resolution of 320 x 240 pixels
• Use Fluke's SuperResolution mode (available in the software) to increase image quality by up to 4x
• LaserSharp Auto Focus - precise laser technology automatically focuses on a target with pinpoint accuracy
• Integrated laser distance meter - calculates and displays the exact distance an image was captured at from the camera
• IR-Fusion technology - active blending of digital and thermal images for enhanced detail
• Continuous level and span adjustment
• Filter mode allows adjustments to thermal sensitivity from 50mK to 40mK to locate finer temperature differences
• Post capture image editing - adjust emissivity, background temperature, transmissivity, palettes, colour alarms, IR fusion, enable/disable markers
• Fluke Connect enabled - wireless interfacing with enabled Fluke testing tools and selected smartphones
• 5MP industrial performance digital camera built in
• Wide temperature measurements range: -20 to +850°C (-4 to +1562°F)
• Selectable colour palettes - 8 standard modes and 8 ultra contrast options
• Optional lenses (sold separately) - swap out the standard lens for a wide angle or telephoto lens
• Light, ergonomic design for easy capturing

What's Included?

• Fluke TiX520 Thermal Camera
• Standard Infrared Lens
• AC Power Supply with Battery Pack Charger (Incl. Universal AC Adapters)
• 2 x Lithium Ion Smart Battery Packs
• USB Cable
• HDMI Video Cable
• Bluetooth Headset
• Hard Carrying Case
• Adjustable Neck/Hand Strap
• Flash Drive with SmartView Software and User Manuals
• Warranty Registration Card
• Manufacturer's Calibration Certificate
