Fluke Ti400 Thermal Camera

Fluke Ti400 Thermal Camera Details

Note: there are two versions of this product available. Choose between image capturing frequency of 9Hz or 60Hz above.

Sick of manually focusing your thermal camera every time you want to capture an image? With the Fluke Ti400, it does it all automatically for you and is also packed full of advanced features designed to enhance thermography!

The highest specification model available in Fluke's Ti range, the Ti400 builds upon the functionality of the Ti200 and Ti300 and delivers the most impressive thermal images out of the entire range. It features a high quality, 320 x 240 pixel detector (76, 800 pixels total), high thermal sensitivity of 50mK for spotting fine temperature differences and can also measure temperature levels across an absolutely huge range from -20 to 1200°C (-4 to 2192°F.

When first capturing an image, the Fluke Ti400 makes life significantly easier thanks to its LaserSharp Auto Focus system.  This unique technology uses a laser marker to determine the distance from the camera to the target and adjusts the focus quality to the optimum amount automatically (you can override this with a manual focus system if you prefer).

Images are also further enhanced by using the AutoBlend mode. This mode automatically blends together a thermal and accompanying digital image to create a thermal image with the detail of a traditional digital image, thus making it much easier to determine what the camera was pointing at. For extra reference, why not also add some text notes or your own voice annotations to an image for easy recall?

Fluke Connect Compatible

Imagine you're working on an electrical panel. With the Ti400, you could scan the panel, see the problem and take the image back to your PC for further analysis/tranmission to others. With Fluke Connect, you can do all this right at the measurement point by streaming an image straight to your phone and then sending it straight to other members of the team!

Fluke Connect is wireless technology that allows Fluke tools to interface with each other and other devices such as smartphones and PCs. The following video outlines exactly how it works and how it can benefit you.

With Fluke Connect, interacting with measurement data is easier than ever before.

Fluke Ti400 Thermal Camera Key Features

• Huge temperature measurement range from -20 to 1200°C
• ±2°C or 2% accuracy
• On-screen emissivity correction, reflected background temperature compensation and transmission correction
• 9Hz and 60Hz versions available
• 320 x 240 pixel detector
• 50mK thermal sensitivity
• Industrial performance 5.0 megapixel digital camera built-in
• Selectable standard and ultra-contrast colour palettes
• Picture-in-picture, full screen infrared and autoblend modes
• High temperature, low temperature and isotherm colour alarms
• Video output
• Image text and voice annotations
• Fluke Connect compatible tool
• 640 x 480 capacitive, fast response touch screen
• Interchangeable lenses - swap out the standard for a wide angle or telephoto lens (sold separately)

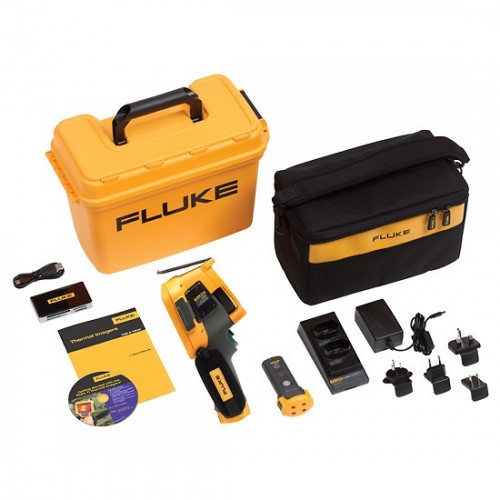

What's Included?

• Fluke Ti400 Thermal Camera
• Standard Infrared Lens
• AC Power Supply and Battery Pack Charger (Includes Mains Adapters)
• 2 x Rechargeable Smart Battery Packs
• USB Cable
• HDMI Video Cable
• SmartView Software (Free Download via Fluke)
• Rugged, Hard Carrying Case
• Soft Transport Bag
• Adjustable Hand Strap
• Warranty Registration Card
• International Adapter Set (9Hz Model Only)
