GREENLEE 501 TRACKER II CABLE LOCATOR SYSTEM

Greenlee 501 Tracker II Cable Locator System

Greenlee_501_tn

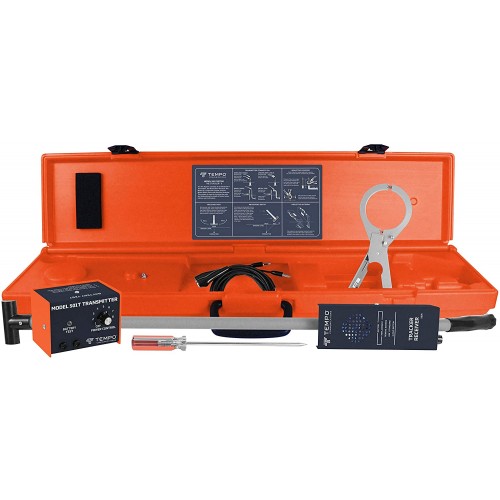

1. The Model 501 consists of
2. 501T Transmitter
3. 501R Receiver
4. 500CA Carrying Case with Inductive Antenna
5. CS16 Cord Set
6. IC-1 Inductive Coupler

The Greenlee 501 is designed to locate the path and depth of buried cable, service wires, metallic pipe or conduit and locate the end of a cut cable.

Transmitter

• The transmitter is housed in an aluminum case and is powered by eight (8) 1.5V AA batteries. The transmitter has an on/off control knob which is also used to adjust the output level and a light emitting diode (LED) indicating the battery condition. In addition, the transmitter has an automatic shut-off feature after 1.5 hours of non-use. Effective range is greater than 4000 feet in length and for depths up to 7 feet.

Receiver

• The receiver is encased in an aluminum housing, mounted with an antenna and is powered by one (1) 9V battery. Like the transmitter, the receiver will automatically shut itself off after 1.5 hours of non-use. The receiver has a speaker for listening to the signal, a meter for monitoring the signal level, a headset jack, an on/off volume control knob and an antenna for detecting the tone over the cable.

Carrying Case with Inductive Antenna

• The case is used for storing and transporting the Tracker II system and is constructed of vacuum formed polyethylene. The case also includes an easy, quick reference operation guide on the inside of the lid.

Cord Set

• An 8 foot pair of leads with plugs and clips is included for connecting the transmitter to the cable or pipe.

Inductive Coupler

• The inductive coupler induces a tracing tone on a cable, wire or pipe by clamping around it.

Optional Headset

• The headset can be used to monitor the received signal in high noise level areas and is plugged into the receiver jack provided.

Features

• Traces path and determines depth of wires and metallic pipes
• Use on active or dead systems without deactivation
• Audible / visual indications of signal strength
• Transmitter output and receiver sensitivity are fully adjustable for maximum accuracy
• Three methods of transmitter connection: direct, inductive coupler and inductive antenna
• Transmitter provides range up to 4,000' (1,219 m) and depths up to 7' (2 m)
• Battery operated (eight AA and one 9V battery is included)
• Molded carrying case included
• 1-year limited warranty
