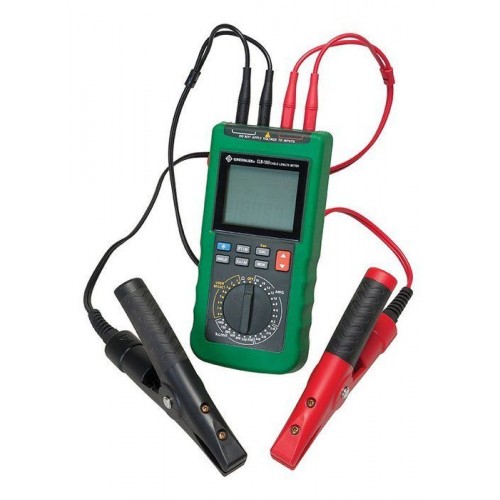

Greenlee CLM-1000 Cable Length Meter

Greenlee CLM-1000 Cable Length Meter

• Measures length of cable without removing it from the spool, counting turns or weighing the spool
• 20 pre-set cable sizes plus 8 user-programmable settings
• Push button selection of Copper or Aluminum cable
• Resistance measurements of 199.99mΩ to 1999.9Ω (5 ranges)

The Greenlee CLM-1000 Cable Length Meter for AWG-kcmil Wire and Cable is an accurate and convenient way to measure wire length and resistance without having to remove it from a spool. Greenlee CLM-1000 is designed with 20 pre-programmed wire sizes, 8 user programmable sizes, and is designed to measure insulated copper and aluminum conductors.

Greenlee CLM-1000 and CLM-1000E Cable Length Meters are hand-held testing devices with the follow- ing measurement capabilities: resistance, temperature, and length. They can be used as  meters to measure precise bonding resistances. The primary function of these meters is to calculate the length of cable based upon its material, temperature, and cable gauge. Cable material type can be either uncoated copper or aluminum. There are 20 pre-programmed and eight programmable cable gauges. (There are no strands per cable specification for the eight programmable switch positions.)

The pre-programmed switch positions for the CLM-1000 are:

• AWG (7 strands) – 2, 4, 6, 8, 10, 12, 14, 16, 18
• Aught (19 strands) – 1/0, 2/0, 3/0, 4/0
• kcmil (37 strands) – 250, 350, 400, 500
• kcmil (61 strands) – 600, 750, 1000
