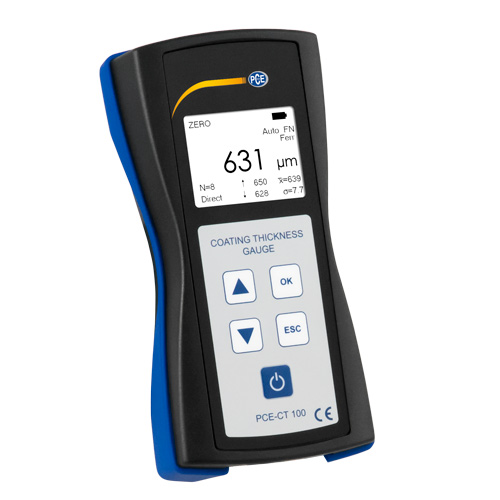

PCE CT 100 [PCE-CT100] Thickness Gauge

PCE-CT 100 Thickness Gauge

Non-destructive coating and dry film thickness (DFT) measuring device for use on ferrous (Fe) and non-ferrous (nFe) metal substrates / Includes factory calibration certificate according to ISO 9001

PCE-CT 100 is a thickness measuring instrument used to quickly and easily determine coating thicknesses on ferrous (Fe) and non-ferrous (nFe) metals. This compact handheld coating thickness gauge uses magnetic induction (ISO 2178) and eddy current (ISO 2360) coating thickness measurement methods to take non-destructive measurements of coating and dry film thickness (DFT) on metal substrates such as steel and aluminum.

When accompanied by an external sensor probe (sensor probes sold separately - see accessories), this coating thickness gauge is ideal for painted and powder-coated surface testing, automotive and aircraft surface finish inspections, primed and coated materials testing, and manufacturing quality control applications. Alarm limits can be set in the coating thickness gauge to notify the user when a coating is too thick or too thin. If a coating thickness measurement falls outside the established limits, the device produces a visual and audible signal.
