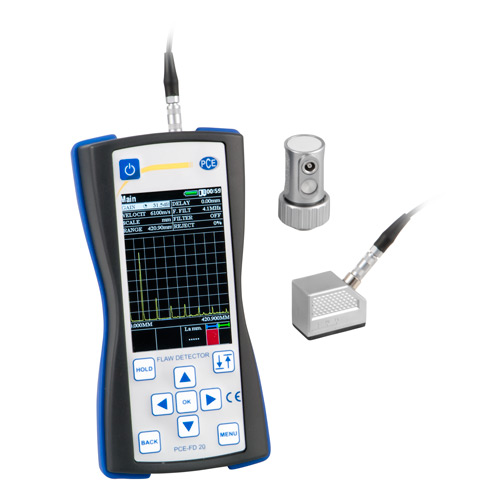

PCE FD 20 [PCE-FD20] Flaw Detector

Operating frequency range

1 ... 10 MHz

Measure time interval range (scan duration)

6 ... 1000 microseconds (µs)

Sound velocity range

1000 ... 9999 m/s

Deviation of measurement of time intervals

Not exceed ± 0.025 µs

Max. deviation of amplitude of signals at receiver input in 0 ... 110 dB range

Not exceed ± 0.5 dB

Testing gain region

125 dB

Averaging over the quantity of starts

1 ... 16

Range of time-variable gain (TVG) / Number of control points TVG

40 dB / 15

Duration of excitation pulse to load

0 ... 0.5 µs

Amplitude of excitation pulse to 50 Ohm load, not less

100, 200, 300

Operating frequency range of receiver at -3 dB

1 ... 10 MHz

Deviation of amplitudes of input signals in 10 ... 100% range of screen height

Not more than 1 dB

Scanning

1 ... 1000 µs

Scanning delay

0 ... 2000 µs

Measurement range of time intervals

0 ... 1000 µs

Prism of probe delay

0 ... 15 µs

Automatic signaling of defects (AFS)

Dual-gate

Setting range of AFS gates

0 ... 2000 µs

Adjusting thresholds of AFS gates

0 ... 100%

Detection of signals (receiver)

Positive half-wave, radio mode

Dimensions of device (approx.)

80 x 162 x 35 mm / 3.14 x 6.37 x 1.37"

Dimensions display (approx.)

48 x 74 mm / 1.88 x 2.91"

Power supply

100 ... 250 V AC or 3 x 1.5 V AA batteries

Weight (approx.)

250 g / 0.55 lb (without batteries)
