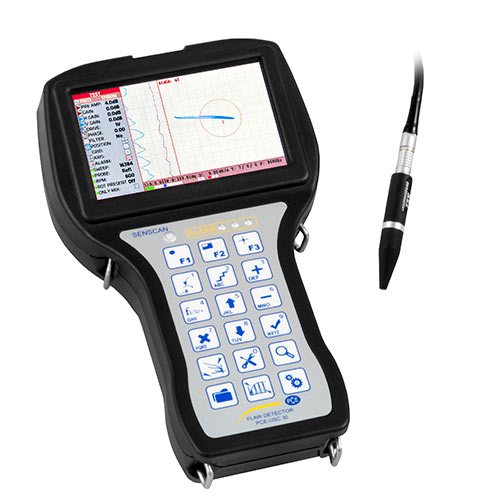

PCE USC 30 [PCE-USC30] Flaw Detector

PCE-USC 30 is a flaw detector designed for the non-destructive testing (NDT) and non-destructive evaluation (NDE) of electrically conductive materials. This portable, handheld flaw detector detects surface defects and measures layer thicknesses using an eddy current. The PCE-USC 30 flaw detector also measures metal conductivity in accordance with the International Annealed Copper Standard (IACS).

The PCE-USC 30 flaw detector has myriad applications including weld seam testing, crack detection, metallurgical and material sorting tests, quality assurance and control, aviation component testing of turbine blades, and pipeline and container testing in the chemical, oil and gas industries.

Frequency range: 0.01 ... 16000 kHz

Probe voltage supply: 0, 5, 1, 2, 4, 6 V

Signal phase shift: 0 ... 360 °

Sampling frequency: 0 ... 10 kHz

Duration of signal superimposition: 0 / 0.5 / 1/2/3/4 seconds

Alarm: Circular, horizontal line, circle sector, cut off

Display: Full-color display (TFT)

Display size: 4.3 "(diagonal)

Display resolution: 800 x 480 pixels

Amplification adjustment: 0 ... 100 dB

Filters: Low-pass (1 ... 4000 Hz), high-pass (1 ... 4000 Hz), band, differential, average

Average interval between measurement errors: 4000 hours

Power supply: 12 V battery

Battery capacity: 4500 mAh

Continuous runtime per battery charge: Approx. 8 hours

Operating temperature: -20 ... +45 ° C

Weight: Approx. 0.9 kg

Dimensions: 230 x 135 x 98 mm
