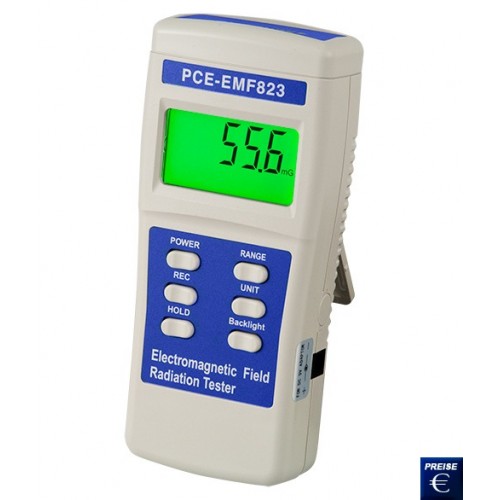

PCE EMF 823 [PCE-EMF823] Gauss Meter

PCE-EMF 823 Gauss Meter

Single-axis electromagnetic field (EMF) detector

PCE-EMF 823 is a portable handheld single-axis Gauss meter or electromagnetic radiation detector for measuring electromagnetic fields (EMFs). This user-friendly EMF meter is ideal for assessing risks associated with exposure to electromagnetic radiation emitted from electric power lines, home appliances and industrial devices.

Designed and calibrated to measure EMF radiation at different bandwidths, the meter provides a quick, easy and reliable way to measure electromagnetic field radiation levels.

EMF range / resolution:

20 micro Tesla (µT) x 0.01 µT

200 µT x 0.1 µT

2000 µT x 1 µT

200 milli-Gauss (mG) x 0.1 mG

2000 mG x 1 mG

20000 mG x 10 mG

Number of axes: Single axis

EMF bandwidth: 30 Hz to 300 Hz

Sampling time: Approx. 1 second

Accuracy:

±4 % + 3 digits (up to 20 µT)

±5 % + 3 digits (up to 200 µT)

±10 % + 5 digits (up to 2000 µT)

Display: 48.8 x 25.3 mm / 1.92 x 0.1 in LCD with backlight

Overrange indication: Display shows "- - - -"

Operating temperature:

0 ... +50°C / +32 ... 122°F

Operating humidity: Max. 80% RH

Power supply: 1 x 9V DC battery (006P, 6F22)

Dimensions: 152 x 69 x 36 mm / 5.98 x 2.72 x 1.42 in

Weight: 215 g / 0.47 lb (including battery)
