PCE MFM 3000 [PCE-MFM3000] Gauss Meter

PCE-MFM 3000 Gauss Meter

Portable handheld AC / DC magnetic field detector

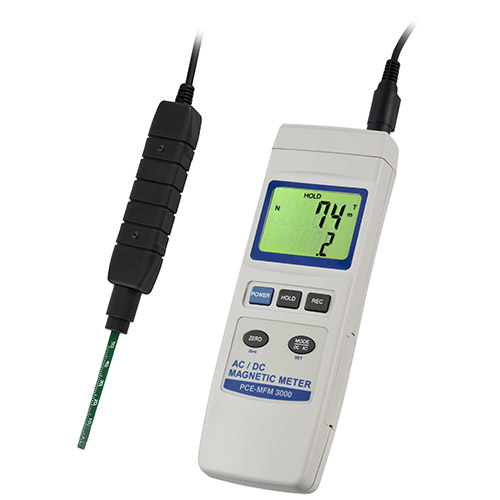

PCE-MFM 3000 is a handheld gauss meter that detects both static (DC) permanent (rare earth) magnetic and dynamic (AC) electromagnetic fields (EMFs) and displays measurement results in gauss (G) or milli Tesla (mT). This portable magnetic field measuring device comes with an external sensor and features an RS-232 port for downloading data to a PC.

Dynamic (AC) electromagnetic field (EMF) measurements

Measurement range Sector 1: 0 ... 300 mT / 0 ... 3000 G

Sector 2: 0 ... 3000 mT / 0 ... 30000 G

Resolution Sector 1: 0.01 mT / 0.1 G

Sector 2: 0.1 mT / 1 G

Accuracy ± 5% + 10 digits

Measurable frequencies 50 Hz / 60 Hz

Static (DC) electromagnetic field (EMF) measurements

Measurement range Sector 1: 0 ... 150 mT / 0 ... 1500 G

Sector 2: 0 ... 1500 mT / 0 ... 15000 G

Resolution Sector 1: 0.01 mT / 0.1 G

Sector 2: 0.1 mT / 1 G

Accuracy ± 5% + 20 di­gits

General specifications

Measurement rate 1 second

Measurement direction Uniaxial

LCD 52 x 38 mm / 2.05 x 1.50 in

Functions Minimum value, maximum value, data hold and automatic shutdown

Operating conditions 0 ... +50°C / +32 ... +122°F, max. 85 % rh

Power supply

9V battery (included)

Optional 9V electric power supply (see accessories)

Input voltage Approx. 20.5-mA

Meter dimensions 198 x 68 x 30 mm / 7.80 x 2.68 x 1.18 in

Sensor dimensions 195 x 25 x 19 mm / 7.68 x 0.98 x 0.75 in

Weight 275 g / 0.61 lb
