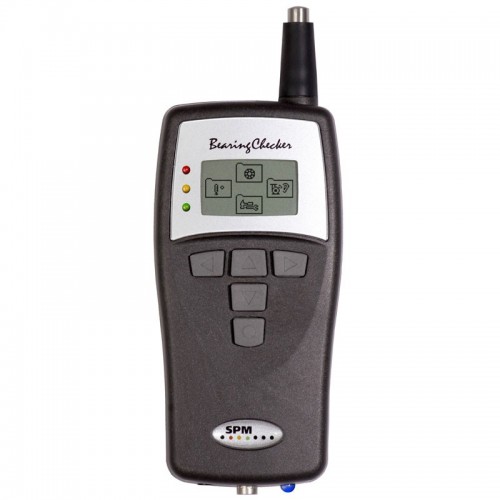

SPM BC100 [BC-100] Bearing Checker and Vibration Tester (Discontinued Replace by BC200)

BC100 Discontinued replace by BC200

SPM BC100 handheld Bearing Checker and Vibration Tester has a built in non-contact thermometer and and electronic stethoscope. The first portable, pocket sized instrument offering evaluated shock pulse measurement, great for fast measurement and evaluation of ball and roller bearing condition.

SPM BC100 Bearing Checker and Vibration Tester with IR Thermometer and Stethoscope

Features

• Through the prediction of bearing damage via shock pulse measurement, users can eliminate most of all unplanned downtime and unnecessary repair of good bearings
• Using the Shock Pulse Method, Bearing Checker measures the condition of ball and roller bearings; giving a green - yellow - red status indication showing whether damage is developing and its severity.
• Built-in infrared sensor measures machine surface temperatureEquipped with an electronic stethoscope function for detecting machine sound irregularities. reading every time a bearing reading is taken.
• When not in use, automatic power off conserves battery power. When switched back on, Bearing Checker resumes its last mode.
• The instrument can be used on most rotating machinery, such as electrical motors, fans and pumps, in a diversity of industrial environments.

Measurements & Functions

• Shock Pulse - Measures shock pulse vibration level in decibels & provides Green - Yellow - Red status indication showing stage & extent of bearing damage
• Temperature - Uses Infrared technology to measure surface temperature of bearings
• Sound - Has a built-in Stethoscope function for listening to machinery sounds & signatures
• Utilities - Onboard customization tools allow user to select metric / Imperial units, battery type, etc.
