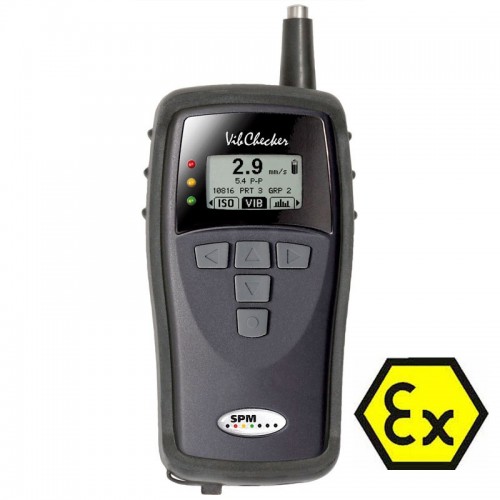

SPM VC100EX Intrinsically Safe Vibchecker HandHeld Vibration Monitor / Bearing Checker with Red/Yellow/Blue Severity Indicators

SPM VC100EX Intrinsically Safe Vibchecker HandHeld Vibration Monitor / Bearing Checker

VibChecker is an intrinsically safe, compact-sized instrument for vibration measurement in the 10-1000 Hz frequency range. Measurement results are immediately and automatically evaluated against ISO standards. Green - Yellow - Red LEDs indicate vibration severity and a real time FFT spectrum is produced for easy pattern recognition. Results can be stored for documentation and follow-up.

Technical Specifications:

Measuring range

0.5 to 49.9 mm/s RMS (0.02 to 2.0 in/s RMS

Frequency range

10 to 1000 Hz

Measurements

Overall vibration according to ISO2372 and ISO10816

Readings

Velocity, acceleration and displacement: peak and peak-to-peak

Spectrum

Linear, 200 lines, Hanning window

General functions

Battery status display, transducer check, metric or imperial units, language independent menus with symbols, storage of up to 12 measuring samples

Condition Indication

Green, yellow and red LED display

Power supply

2 x 1.5 V AA batteries

Internal transducer

Accelerometer type MEMS

Input connector

Mini-coax for external transducer

External transducers

Vibration transducer TRM100EX

Output connector

3.5 mm stereo min plug for calibration

Operating temperature

0 °C to +50 °C (32 °F to 122 °F)
