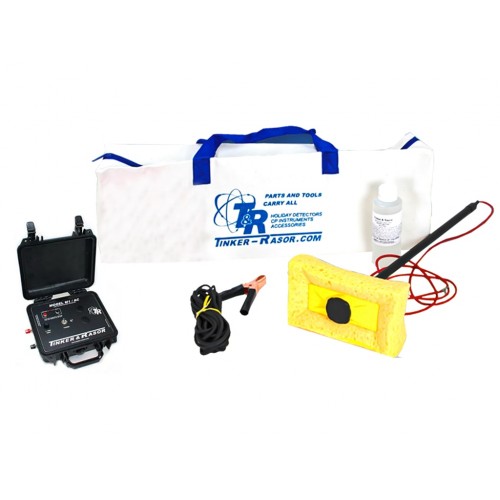

Tinker & Rasor M1/AC - Low Voltage / Wet Sponge Holiday Detector (AC Powered)
- ManufacturerTinker & Rasor
- Product Code: M1/AC
- Availability: Pre-Order
-
Rp0
Tinker & Rasor M1/AC - Low Voltage / Wet Sponge Holiday Detector (AC Powered)
AC Powered unit for in-plant operations
Regulated 67.5v output
Push button calibration check
Use on thin film coatings up to 20 mils
2 Resistance settings
The Model M1/AC Holiday Detector is a highly sensitive device designed to locate holidays (pin holes, voids, etc.) in thin film protective coating of relatively high electrical resistance when such films are applied to the surface of material of low electrical resistance. In these applications, such as painted metal surfaces, the Model M1/AC Holiday Detector will locate these points very accurately with an audible signal. This method of inspection of thin film is a non-destructive test and will not injure the protective coating.
Manufacturer Specs
| Tinker & Rasor M1/AC Specifications | |
| Applications | Use on thin film coatings on conductive substrates such as tanks, concrete, etc. |
| Calibration | Recommended Annually |
| Output | 67.5v D.C. |
| Resistance for coatings on metal | 80 ohms |
| Resistance for coatings on concrete | 90 ohms |
| Factory Setting | 80 ohms (See Instructions for information on changing setting to 90 ohms) |
| Dimensions | 5.75" x 12.25" x 10", 10 lbs. (146mm x 311mm x 254mm, 4.5kg) - Instrument 14" x 12" x 6", 12 lbs. (355.6mm x 304.8mm x 15.24mm, 5.44kg) - Shipping |
Tech Specs
Pinhole Detectors |
|
|---|---|
| Min Voltage | 67.5 V (67500 mV) |
| Max Voltage | 67.5 V (67500 mV) |
| Thickness Range | 0 - 20mm |
Test Equipment General Attributes |
|
| Unique Features | AC powered version |
| Product Weight | 10 LBS |
| Shipping Weight | 12 LBS |
