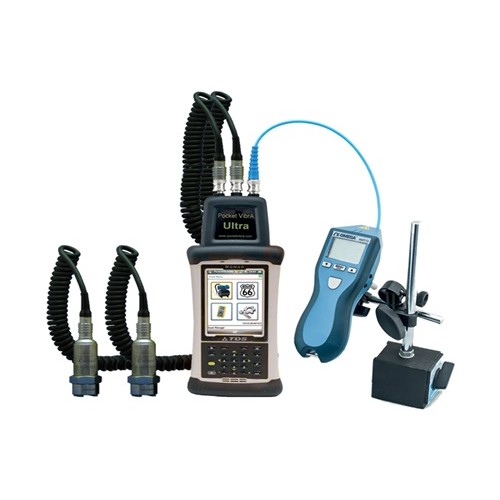

TPI 9041 Ultra II Vibration Analyser & Balancer
- ManufacturerTest Products International
- Product Code: TPI 9041
- Availability: Pre-Order
-
Rp0
TPI 9041 Ultra II Vibration Analyser & Balancer Details
Need a reliable tool to monitor the status of your machinery? The TPI 9041 Ultra II detects balance errors, misalignment, looseness and bearing defects with a high level of precision.
Handheld and portable, the Ultra II uses advanced predictive analysis to calculate the time period a failure could take place, making this tool suitable for predictive maintenance and spotting errors before they become a problem. Its internal condition-based monitoring tool accurately tracks bearing wear and gear degradation from up to 3 channels simultaneously.
The Ultra II also functions as a data collector, allowing the user to track and view back vibration measurements over a period of time. This collection software also can display site information, assets and measurements in a tree structure, display ISO vibration levels, has colour-coded alarms, has zoomable frequency spectrum and time waveforms and you can even download all this information to PC using TPI's C-Trend software (includes as standard with the tester).
TPI 9041 Ultra II Vibration Analyser & Balancer Key Features
- Automatic detection of out of balance, misalignments, looseness and bearing defects
- Advanced predictive analysis capabilities allow the user to calculate a failure time frame
- Condition based monitoring - analyse bearing wear and gear degradation
- Built-in single plane balancing - correct common sources of vibrations
- Dual plane balancing possible with additional accelerometer (sold separately)
- Inspection, Lube and remote/server database
- Configure your own envelope filters and demodulation functionality
- Capture data simultaneously from three separate channels
- High resolution (0.2Hz) frequency spectrum from 2Hz to 10kHz
- IP68 fully waterproof enclosure - suitable for use in even the most demanding conditions
- Use the included C-trend software to store, analyse and create reports based on all measurements captured
- Colour-coded alarms highlight problems alongside trend lines for predictive maintenance
What's Included?
- TPI 9041 Ultra II Vibration Analyser & Balancer
- Tachometer
- Accelerometer
- Cables
- Tachometer Mount Adapter
- Carrying Case w/ Shoulder Strap
- C-Trend Software
