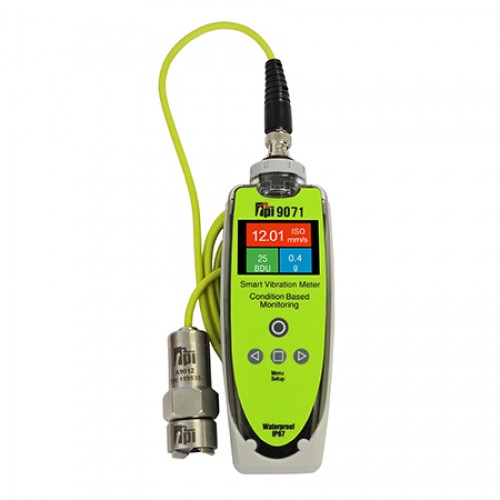

TPI 9071 Smart Vibration Meter
- ManufacturerTest Products International
- Product Code: TPI 9071
- Availability: Pre-Order
-
Rp0
TPI 9071 Smart Vibration Meter w/ 1.5m BNC Cable Accelerometer+Magnet Details
This simple-to-use, low cost vibration meter is ideal for recording, analysing and finding problems with the vibration of machinery and equipment.
Supplied as standard with a BNC cable accelerometer with built-in magnet, the TPI 9071 can be used to easily find a clear picture of problems with unbalance, misalignment and looseness. For more complex issues, an 800-line spectrum with zoom and cursor helps to identify complex issues.
The TPI 9071 is suitable for use in a wide variety of areas, including commercial/industrial HVAC, food processing, manufacturing, mining, packaging, petrochemical, pulp/paper production, power plants and utilities.
During testing, the TPI 9071 will give you an overall snapshot into the machine under test's machine/bearing conditions. Vibration values are displayed on the screen with colour-coded alarm levels for ISO values and bearing damage (BDU), with it possible to switch to unbalance/misalignment and looseness mode for a clear picture of problems.
The TPI 9071 is also a datalogging vibration meter and can store up to 200 readings in internal memory for easy recall.
TPI 9071 Vibration Meter Key Features
- Find problems with your machinery and equipment by analysing vibration
- Full colour LED display
- Standard cable mounted accelerometer with magnet
- ISO built-in alarms
- Easily identify bearing problems with BDU readings
- Easy identify machine faults with unbalance, misalingment and looseness built-in band filter
- 800 line FFT spectrum analysis for further analysis into faults
- Ruggedised, IP67 rated casing
- Collect and store up to 200 readings in internal memory
What's Included?
- TPI 9071 Vibration Meter
- A9012 IEPE Accelerometer with Cable
- A9073 Magnet
- A9074 Soft Pouch
Optional Accessories
- A9086 Protective Boot with Magnets
