TSI 9565 VelociCalc Multi-Function Ventilation Meter with Straight Probe

TSI 9565 - VelociCalc Multi-Function Ventilation Meter with Straight Probe

• HVAC testing and balancing
• Cleanroom testing
• HVAC commissioning and troubleshooting
• Laboratory fume hood testing
• IAQ investigations
• Thermal comfort studies
• Ventilation evaluations
• Process airflow testing
• Accurate air velocity measurements

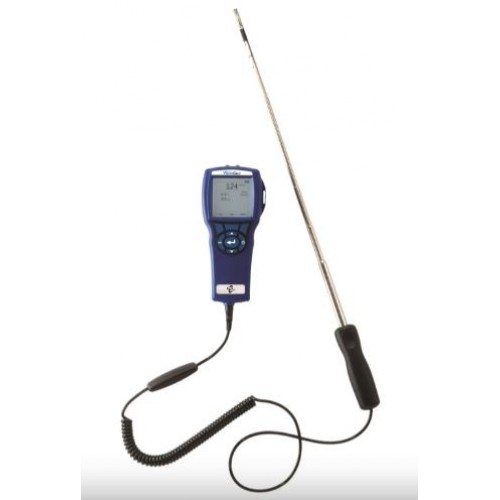

The VelociCalc model 9565 Multi-Function Ventilation Meter from TSI Alnor is a portable, handheld device for accurate air velocity measurement. The 9565 can simultaneously measure air velocity, flow, temperature, humidity, and pressure. It features best-in-class air velocity accuracy, as well as an integrated differential pressure sensor.

Ergonomic Design

The 9565 features an ergonomic, over molded case design with probe holder for unmatched ease-of-use and durability.

Large Display

A large graphic display, able to show 5 parameters at the same time, provides a simple menu-driven user interface for easy operation.

Simple Operation

For even further ease-of-use, TSI has included on-screen prompts and step-by-step instructions which will help to guide you as you perform setup, operation, and field calibration.

Straight Air Velocity Probe

This version, model 9565, includes the model 964 Straight Air Velocity Probe and is designed for use with a range of additional plug-in probes. The model 964 probe is versatile probe, as it can measure air velocity, temperature, and relative humidity. Optional “smart” plug-in probes are also available, including VOC, CO2, and rotating vane probes. The 9565 can also accept up to two K-alloy thermocouples.

TrakPro™ Data Analysis Software

The 9565 is capable of manual or continuous data logging with time and date stamp. The instrument comes standard with the TSI TrakPro™ data analysis software which helps users quickly generate professional reports. Also included is the TSI LogDat2™ downloading software, which, combined with the instrument’s Bluetooth capability, allows users to
