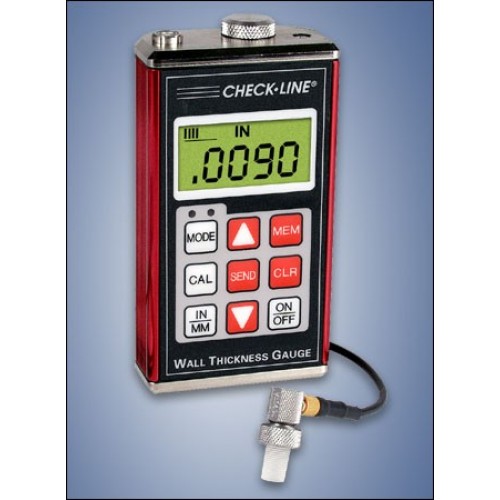

CheckLine TI-007DL High Resolution Datalogging Ultrasonic Wall Thickness Gauge

  • ManufacturerCheckline
  • Product Code: TI-007DL
  • Availability: Pre-Order

  • Rp0

0 reviews
Write a review
The TI-007 is a precision ultrasonic wall thickness gauge specifically suited to make extremely precise and high-resolution measurements on thin-walled metal and plastics. It is packaged in a sturdy extruded aluminum housing which is sealed for excellent environmental protection assuring trouble-free use even in the toughest field and production environments.



The gauges have a MEASURING RANGE from 0.0060 to 1.0000 inch, (0.15 to 25.40 mm). Using a single element delay tip transducer, the gauges will measure thin materials and automatically remove any coatings in ECHO-TO-ECHO MODE as well as automatically switch to interface echo mode when measuring thicker materials and plastics.

Features
  • Resolution of 0.0001 inch (0.001 mm)
  • Large, backlit LCD display retains last reading
  • TI-007-GT model available with Graphite Tip for measuring plastics
  • Selectable units of inch or mm  RS-232
  • Data output of individual values for connection to data collection or quality control systems
  • CE Certified
  • Includes NIST Calibration Certificate
 Delay Line Tips for TI-007
short tip for thin metals
X-231-0000
1/4" x 3/8" for all metals (Short)
for precision measurement
tall tip for thicker metals
X-241-0000
1/4" x 1/2" for all metals (Long)
for extended depth measurements
conical tip for limited SA
X-532-0000
3/16" x 3/8" Conical Tip for all metals Optional
for minimal surface area measurements



The TI-007 is supplied as a complete kit with



  • Gauge
  • Probe
  • 4 oz. bottle of coupling fluid
  • 2 AA batteries
  • NIST Calibration Certificate and Operating Instruction Manual
  • Foam-fitted carrying case
