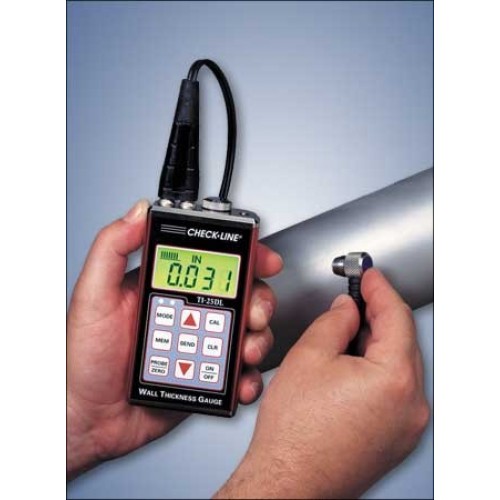

CheckLine TI-25DL General Purpose Datalogging Ultrasonic Wall Thickness Gauge

  • ManufacturerCheckline
  • Product Code: TI-25DL
  • Availability: Pre-Order

  • Rp0

0 reviews
Write a review
The TI-25DL Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
The gauge can be used in a Single Thickness Reading mode or in two alternative modes, the Scan mode and the and the Differential mode. The Scan modes permits the user to "drag" the probe over a large measuring area where the minimum thickness encountered during the scan will be displayed. The Differential mode displays the difference ("+" or "-") from a set "nominal" value
The TI-25DL incorporates a built-in memory for 1000 data points that can be separated into 10 separate "batches." The stored data can be downloaded to a serial printer or a personal computer. A Windows compatible data transfer program is supplied at no additional cost.

Features
  • Resolution of 0.001 inch (0.01 mm)
  • Large, backlit LCD display retains last reading
  • Simple operator controls virtually eliminate training
  • Special-purpose probes are offered for a variety of applications
  • Switch-selected units for inches or mm
  • Memory for 1000 data points in up to 10 batches
  • Windows compatible data transfer program supplied at no additional cost.
  • CE Certified
  • NIST Calibration Certificate
The TI-25DL is supplied as a complete kit with: /span>
  • Gauge and Probe,
  • Data transfer software,
  • Serial output cable,
  • 4 oz. bottle of coupling fluid,
  • 2 AA batteries,
  • NIST Calibration Certificate and Operating Instruction Manual
  • Foam-fitted carrying case.
