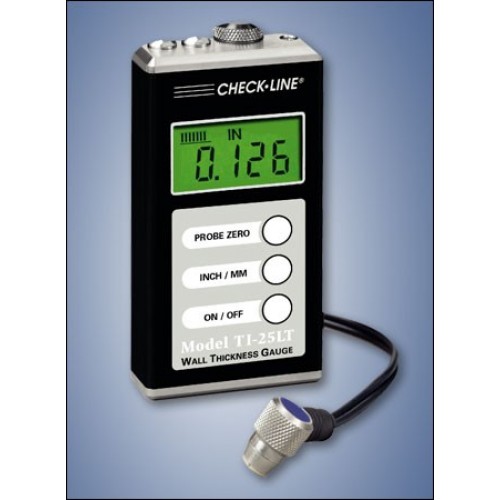

CheckLine TI-25LT Economical Steel Only Ultrasonic Wall Thickness Gauge
- ManufacturerCheckline
- Product Code: TI-25LT
- Availability: 2-3 Days
-
Rp0
The TI-25LT Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion - from only one side!
Standard configuration: In its standard configuration, the TI-25LT is factory set to measure steel only
Optional configuration: As a "no cost" option, the TI-25LT can be factory set to measure on any other single material instead of steel.
Easy upgrade to full TI-25M functionality (refer to separate data sheet).
TI-25M measures on all metals, ceramics, glass and most rigid plastics. It provides Single Reading and Scan modes, where the probe is dragged over a large measuring area. The minimum reading recorded during the "scan" is displayed.
TI-25M measures on all metals, ceramics, glass and most rigid plastics. It provides Single Reading and Scan modes, where the probe is dragged over a large measuring area. The minimum reading recorded during the "scan" is displayed.
Features:
- Resolution of 0.004 inch (0.01 mm)
- Large, backlit LCD display retains last reading
- Simple operator controls virtually eliminate training
- Special-purpose probes are offered for a variety of applications
- The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions
- Switch-selected units for inches or mm
- For underwater surveying, probe cable lengths up to 50 feet are optionally
- The TI-25LT probe is waterproof and can be submerged in water
- CE Certified
- Includes NIST Calibration Certificate
Supplied as a Complete Kit including:
- Gauge
- Probe
- 4 oz. bottle of coupling fluid
- 2 AA batteries
- NIST Calibration Certificate and Operating Instruction Manual
- Foam-fitted carrying case
