The Dakota R9 Sonic Tester has three material calibration options (single point, two point, and target velocity) for increased accuracy. Cylinder wall mapping software available for manually creating reports. Finally, our 5 year limited warranty indicates how we feel about the quality
Product Features

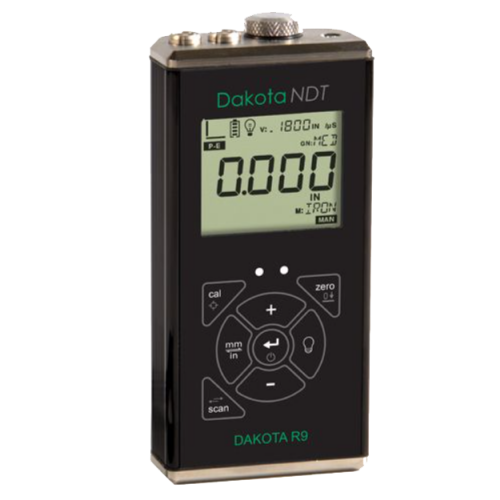

Dakota R9 Sonic Tester
| Model | R9 |
| Display Mode | |
| Material thickness digits display | |
| Measurement Range |
PE: 0.63 - 914.4mm (0.025 - 36") |
| Resolution |
0.01mm (0.001”) |
| Velocity Range |
305 - 18,542m/s (0.0120 - 0.7300in/μs) |
| Additional Features | |
| High Speed Scan |
100 readings per second |
| Calibration Options | |
| 1 - point | |
| 2 - point | |
| Transducer Probe Type |
Dual Element |
| Transducer Frequency Range |
1 - 10MHz |
| V-path / dual path error correction |
Automatic |
| Probe Zero |
Manual (via integrated probe disk) |
| Display |
12.7mm (0.5 inches) high digits |
| Units (selectable) |
mm or inches |
| LED Backlight |
on/off/auto |
| Repeatability / Stability Indicator |
Technical Specification
Dakota R9 Sonic Tester
| Part Number | Description | Certificate |
| Z-309-0002 | Dakota R9 Sonic Tester (PR-9) | |
| Operating Temperature | -30 to 75ºC (-22 to 167ºF) | |
| Power Supply | 2 x AA batteries | |
| Battery Life | Alkaline – 45 hrs and Nicad – 23 hrs | |
| Gauge Weight | 312g (11oz) - including batteries | |
| Gauge Dimensions | 63.5 x 131 x 31.5mm (2.5 x 5.17 x 1.24”) | |
| Packing List | Unit, Standard Transducer, Couplant, Manual, Plastic Carrying Case and AA Batteries. | |
