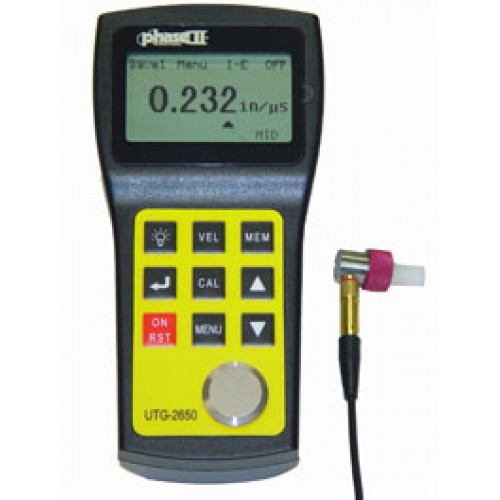

Phase II UTG-2650 Ultra Precise Ultrasonic Thickness Gauge

The Phase II UTG2650 Ultra Precise Ultrasonic Thickness Gauge has ultrasonic technology, allowing you to obtain ultra-precise thickness measurements and store them to memory. The UTG-2650 is capable of reading wall thickness down to 0.010 with a super high adjustable resolution of up to 0.0001.

The Phase II UTG-2650's dynamic sonic gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and any other good, ultrasonic wage conductor as long as it has parallel top and bottom surfaces. The UTG-2650 will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.

Product Features:

• Display type: 4-digit LCD w/ backlight
• Display resolution inches (selectable): 0.01 in., 0.001 in. or 0.0001 in.
• Display resolution metric (selectable): 0.1mm, 0.01mm or 0.001mm
• Measuring range standard mode: 0.010 in. to 0.787 in. (steel)
• Accuracy: +/-0.0002 in. (0.005mm) if thickness < 3mm; +/-0.002 in. (0.05mm) if thickness < 20mm
• Sound velocity range (adjustable): 3280 ft./s to 32805 ft./s (1000-9999m/s)
• Upper/Lower limit preset alarm: Yes
• Operating temperature: 32 ° to 122 °F
• Refresh frequency: 4 Hz up to 25 Hz
• Memory: 500 test values
• Power supply: Two AA alkaline batteries
• Battery life: Approx. 200 hours (w/backlight off)
• Power consumption: Working current less than 3V
• State-of-the-art ultrasonic technology obtains ultra precise thickness measurements and stores them to memory
• Capable of reading wall thickness down to 0.010 in. with super high adjustable resolution of up to 0.0001 in.
• Designed to measure thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and any ultrasonic wave conductor that has parallel top and bottom surfaces
• Will accurately display readings in either inch or millimeter after simple calibration to known thickness or sound velocity
