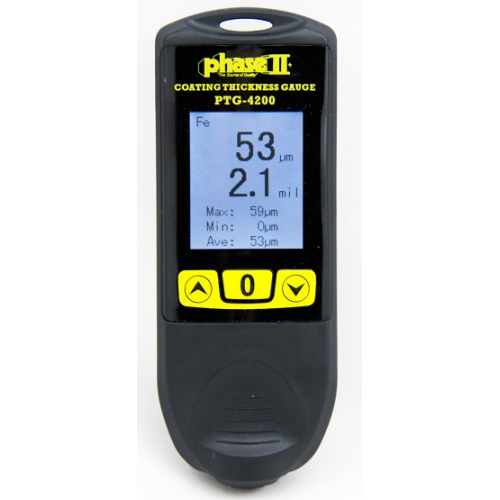

Phase II PTG-4200 Coating Thickness Gauge

The Phase II PTG4200 Coating Thickness Gauge can perform two different methods of calculating thickness measurement by utilizing the characteristics of both eddy current and magnetic induction.

With Phase II PTG-4200, you can easily detect the coating thickness of nonmagnetic coating on a magnetic substrate (ferrous) or an insulating coating on a non-magnetic conductive substrate (non-ferrous) utilizing our auto-detect, integrated probe.

The PTG-4200 coating thickness gauge can be used in many areas of industry including automotive auctions, manufacturing, general engineering, commercial inspection, etc. The gauge utilizes an integrated probe that can automatically detect a Ferrous or Non-Ferrous substrate and comes with 2 substrate samples (steel,aluminum), 4 calibrated thickness samples, carry case, batteries and operation manual.

Product Features:

• Measuring range: 0 to 1000um or 0 to 40 mils
• Resolution: 0.1um/0.01 mils (0 to 99um) or 1mm (over 100um)
• Guaranteed tolerance: After one-point calibration: =/- 1-3%n or 2um (whichever is greater)
• Display: 4 digits (digit height = 10mm/0.4 in.)
• Min. measuring area: 0.2 in. x 0.2 in. (5mm x 5mm)
• Min. radius of curvature: Convex: 0.12 in. (3mm); Concave: 1.2 in. (30mm)
• Min. substrate thickness -ferrous: 20 mils (0.5mm)
• Min. substrate thickness - non-ferrous: 2 mils (50 mm)
• Calibration: Zero calibration/Foil calibration
• Max. Surface temperature of test object: 302 °F (max contact time is 2 seconds)
• Power source: Four AAA batteries
• Performs two methods of calculating thickness measurement by utilizing characteristics of both eddy current and magnetic induction
• Testing performance both non-destructive and extremely accurate
• State-of-the-art thickness gage can easily detect thickness of nonmagnetic coating on magnetic substrate (ferrous) or insulating coating on non‐magnetic conductive substrate (non‐ferrous) utilizing auto‐detect, integrated probe

Applications

• Automotive auctions
• Manufacturing
• General engineering
• Commercial inspection
