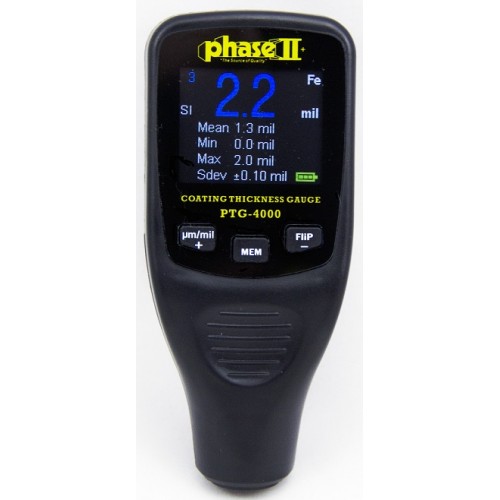

Phase II PTG-4000 Coating Thickness Gauge with Color Flip Display
- ManufacturerPhase II
- Product Code: PTG-4000
- Availability: Pre-Order
-
Rp0
The Phase II PTG4000 Coating Thickness Gauge with Color Flip Display can perform two different methods of calculating thickness measurement by utilizing the characteristics of both eddy current and magnetic induction. Testing performance is both non-destructive and extremely accurate.
With the Phase II PTG-4000 state-of-the-art coating thickness gage, you can easily detect the thickness of nonmagnetic coating on a magnetic substrate (ferrous) or an insulating coating on a non-magnetic conductive substrate (non-ferrous) utilizing our auto-detect, integrated probe. The PTG-4000 coating thickness gauge can be used in many areas of industry including automotive auctions, manufacturing, general engineering, commercial inspection, etc.
Product Features:
- Measuring range: 0 to 1, 250um max. or 0 to 50 mils
- Resolution: 1um/0.1mils(0 to 99um)
- Accuracy: +/- 3% + 2 um ( +/-3%+0.1 mil )
- Display: 3 digit color LCD
- Single or continuous Measurement: Selectable
- Min. measuring area: 0.2 in. x 0.2 in. (5mm x 5mm)
- Min. radius of curvature: Convex: 0.12 in. (3mm)
- Concave: 1.2 in. (30mm)
- Min. substrate thickness - ferrous: 20 mils (0.5mm)
- Min. substrate thickness - non-ferrous: 2 mils (50 um)
- Max. surface temperature of test object: 302 °F (max. contact time is 2 seconds)
- Power Source: Two AAA batteries
- Performs two methods of calculating thickness measurement by utilizing characteristics of both eddy current and magnetic induction
- Testing performance is both non-destructive and extremely accurate
- State-of-the-art thickness gage can easily detect thickness of nonmagnetic coating on magnetic substrate (ferrous) or insulating coating on non-magnetic conductive substrate (non-ferrous) utilizing auto-detect, integrated probe
Applications
- Automotive auctions
- Manufacturing
- General engineering
- Commercial inspection
