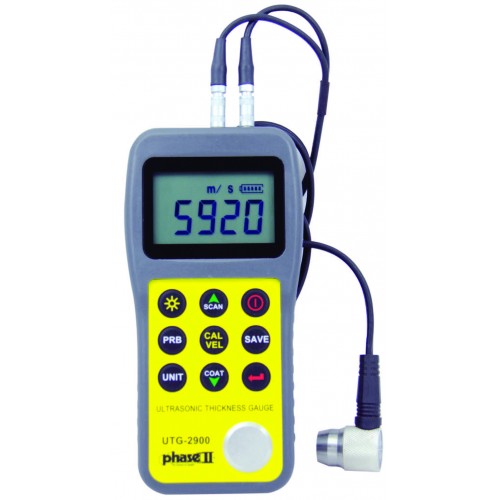

Phase II UTG-2900 Ultrasonic Thickness Gauge with Thru Coating Capability

The Phase II UTG2900 Ultrasonic Thickness Gauge with Thru Coating Capability is packed with features typically found on high end models. This multi-functional ultrasonic thickness gauge offers everything from basic measurement, Thru-Coating capabilities, Scanning Capabilities, Adjustable Sound Velocity, extended memory and USB output capabilities. The UTG-2900 is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminium, titanium, plastics, ceramics, glass and any other good, ultrasonic wave conductor as long as it has parallel top and bottom surfaces. The UTG-2900 accurately displays readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.

Product Features:

• Display type: 4.5-digit LCD w/ backlight
• Minimum display unit: 0.001 in./0.01mm (selectable)
• Measuring range pulse-echo: 0.025 in. to 23.0 in. in steel
• Echo-Echo: 0.118 in. to 2.35 in.
• Accuracy: +/- (0.5% thickness + .001 in.)
• Sound velocity range: 3280 ft./s to 32805 ft./s (1000 to 9999m/s)
• Upper/Lower limit preset alarm: Yes
• Scanning feature: Yes, 16 measurements/second
• Operating temperature: 32 ° to 122 °F
• Frequency: 5 MHz
• Update range: 4 Hz
• Memory: 20 groups (100 files/group)
• Output: USB
• Power supply: Two AA alkaline batteries
• Battery life: Approx. 100 hours (w/backlight off)
• Power consumption: Working current less than 3V
• Multi-functional unit offers basic measurement, Thru Coating capabilities, Scanning Capabilities, Adjustable Sound Velocity, extended memory and USB output capabilitiesf
• Designed to measure thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and any ultrasonic wave conductor that has parallel top and bottom surfaces
• Accurately displays readings in either inch or millimeter after simple calibration to known thickness or sound velocity
