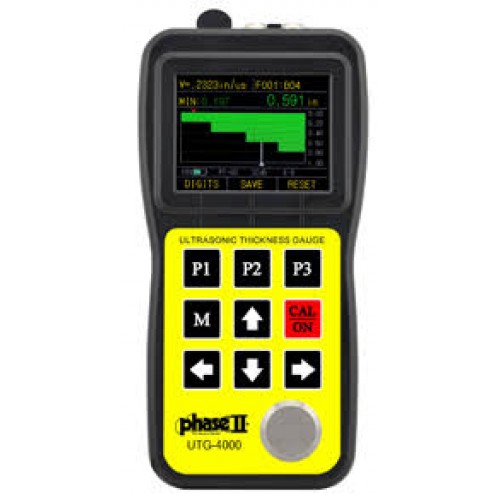

Phase II UTG-4000 Ultrasonic Thickness Gauge with A and B Scan and Thru Coating Capability

The Phase II UTG4000 Ultrasonic Thickness Gauge with A and B Scan and Thru Coating Capability utilizes color waveform A-scan and time based B-scan for absolute correctness. This state-of-the-art ultrasonic thickness gauge is packed with useful features allowing users to be confident of the displayed values on the most critical of applications. The Phase II UTG-4000 offers everything, from basic measurement, Scan mode with Min/Max viewing, GO/NO GO display, Adjustable Sound Velocity, to Thru-Coating capabilities. The UTG-4000 is designed to measure the thickness of metallic and non-metallic materials in critical situations that ordinary thickness gauges could not do.

The Phase II UTG-4000 will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.

Product Features:

• Operating principle: Ultrasonic pulse/echo method with dual element probe
• Display type: 2.4 in. color screen
• Resolution: 0.001 in., .01 in./0.01mm (selectable)
• Measuring range: 0.02 to 20.0 in. (10mm-145mm), dependent upon probe and material
• Repeatability: +/-.001 in. (+/-0.05mm)
• Sound velocity range: 0.0197 to 0.3937 in./us (500 to 9999m/s)
• Measuring Error: 0.001 in.(up to 0.984 in.); 0.007 in.(up to 3.03 in.); 0.019 in.( 4 in. and above)
• Display modes: Digital thickness readout; A-scan or waveform; Min/Max capture; D-Value/Reduction
• V-Path correction: Automatic
• Update rate (selectable): 4 Hz, 8 Hz, 16 Hz
• Refresh rate: 4/second
• Alarm settings: Min/Max alarm; Dynamic waveform color change on alarm
• Operating temperature: 14 °F to 122 °F
• Auto shut-off after: 5 minutes
• Power supply: Twp 3V AA alkaline batteries
• Operating time: Approx. 36 hours
• Utilizes color waveform A-scan and time based B-scan for absolute correctness
• State-of-the-art ultrasonic thickness gauge packed with useful features
• Users can be confident of displayed values on most critical of applications
• Multi-functional ultrasonic thickness gauge offers everything from basic measurement, Scan mode with Min/Max viewing, GO/NO GO display, Adjustable Sound Velocity and Thru-Coating Capabilities
• Designed to measure thickness of metallic and non-metallic material in critical situations
