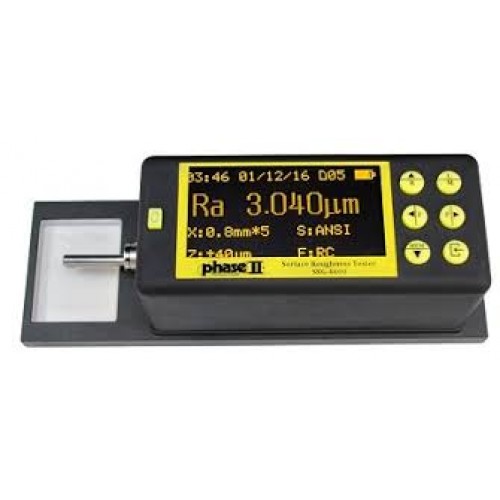

Phase II SRG-4600 Portable Surface Roughness Tester Profilometer with 9 Roughness Parameters

The Phase II SRG4600 Portable Surface Roughness Tester Profilometer with 9 Roughness Parameters will instill the highest level of confidence in your production, shop floor or QC lab. Extended memory and output coupled with many updated useful functions, the SRG-4600 is clearly the leader in ultra accurate surface roughness/profile testing. This device is distinguished by a high level of accuracy, multiple parameters and simplicity of operation. Extremely sensitive and highly accurate readings from this Phase II SRG-4600 is offered via 9 popular surface roughness scales including Ra, Rq (Rms), Rt, Rz and Rmax.

The diamond stylus is hypersensitive and sophisticated enough to allow for a .001 (um) micron display resolution. The Phase II SRG-4600 can utilize an easy interface to allow for changes of in/mm (uin/um), cutoff length, sampling length, parameters, level of test(stylus position), digital filters and more! Surface roughness measurement results are displayed as large characters on the LCD screen for easy recognition.

Battery powered portability allows the SRG-4600 surface roughness tester/profilometer to mobilize productivity throughout the shop. Further, a wireless Bluetooth auto-start comes standard with each unit. Optional Micro Printer is available separately, as well as an optional stand and software.

Product Features:

• Measures: Flat, inside and outside diameters
• Measures grooves and recessions: wider than 0.16 in. (4mm)
• Roughness parameters: Ra, Rz, Rq, Rt, Rs, Rsm, Rmax, Rpc, Rmr
• Roughness standards: ISO/DIN/JIS/ANSI
• Display resolutions: 0.01um/+/-20 um
• 0.02um/+/-40 um
• 0.04um/+/-80 um
• Measuring accuracy: Less than or equl to +/-10%
• Repeatability: Less than or equal to 6%
• Measuring range Ra, Rq: 0.01-40um
• Measuring range Rz,Rt, Rm: 0.02-160um
• Maximum drive range: 0.7 in. (17.5mm)
• Cut-off length: 0.009/0.03/0.09inch (0.25/0.8/2.5mm)
• Tracing speeds: speed 1mm/s (sampling length 2.5mm); speed 0.5mm/s (sampling length 0.8mm); speed 0.135mm/s (sampling length 0.25mm)
• Sensor: Inductance type
• Sensor-stylus: Diamond, radius 5um
• Pick up Force: < 4mN
• Filter: RC, PC-RC, GAUSSIAN, D-P
• Data output: USB
• Operating temperature: 41 °F to 104 °F
• Weight: 0.97 lb. (440g)
• Power: Li-Ion rechargeable battery
• Auto shut-off
• 9 Different roughness parameters
• Stylus position indicator
• USB output to PC
• Large memory
